Highly integrated, circulating deoxygenation
Product Overview
The LOM series is an open additive manufacturing system based on industrial robots, featuring 7/8-axis coordinated motion and an exceptionally large formable range. It is suitable for the fabrication and remanufacturing of long-shaft components and various complex curved-surface products, such as crankshafts, hydraulic supports, columns, and rolls.

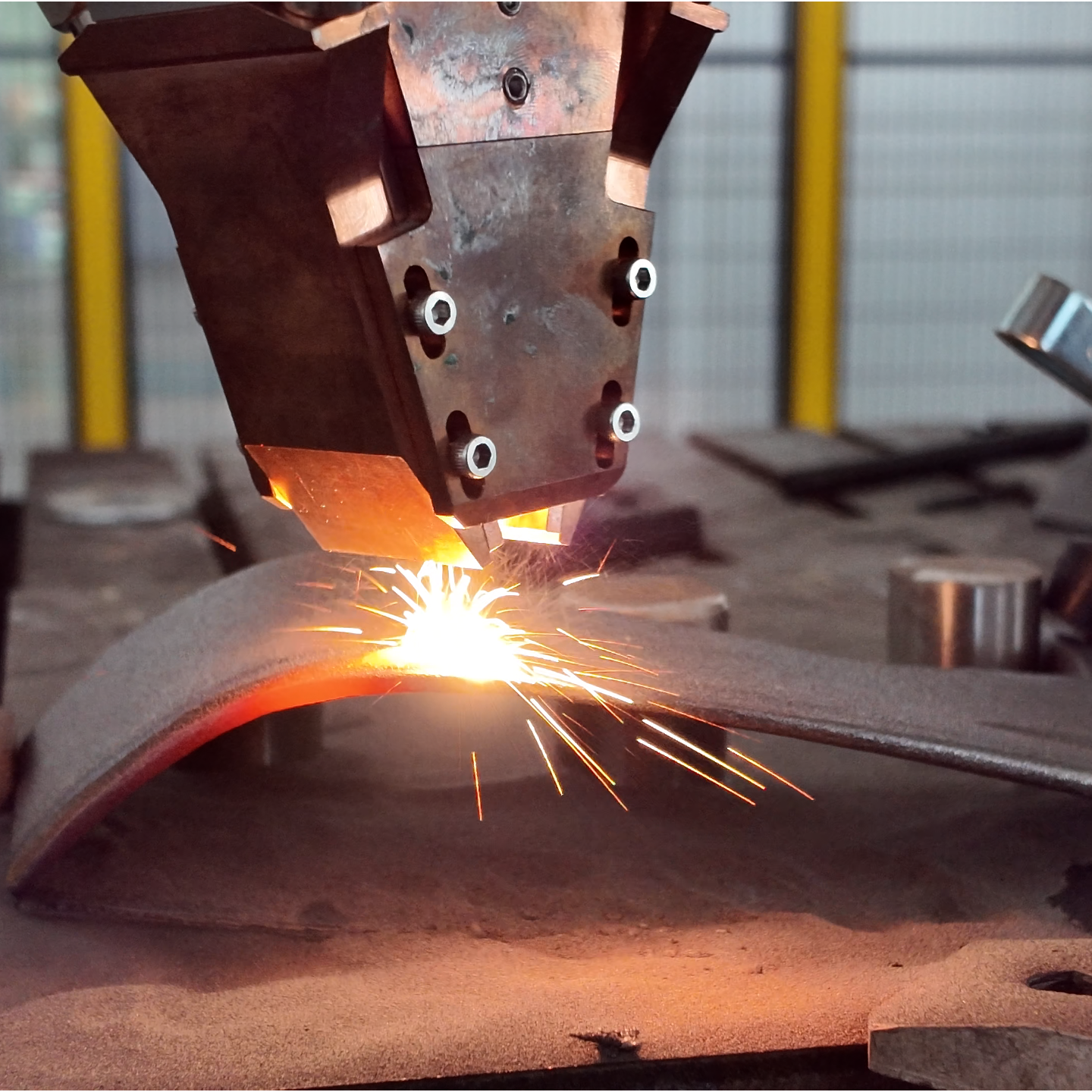

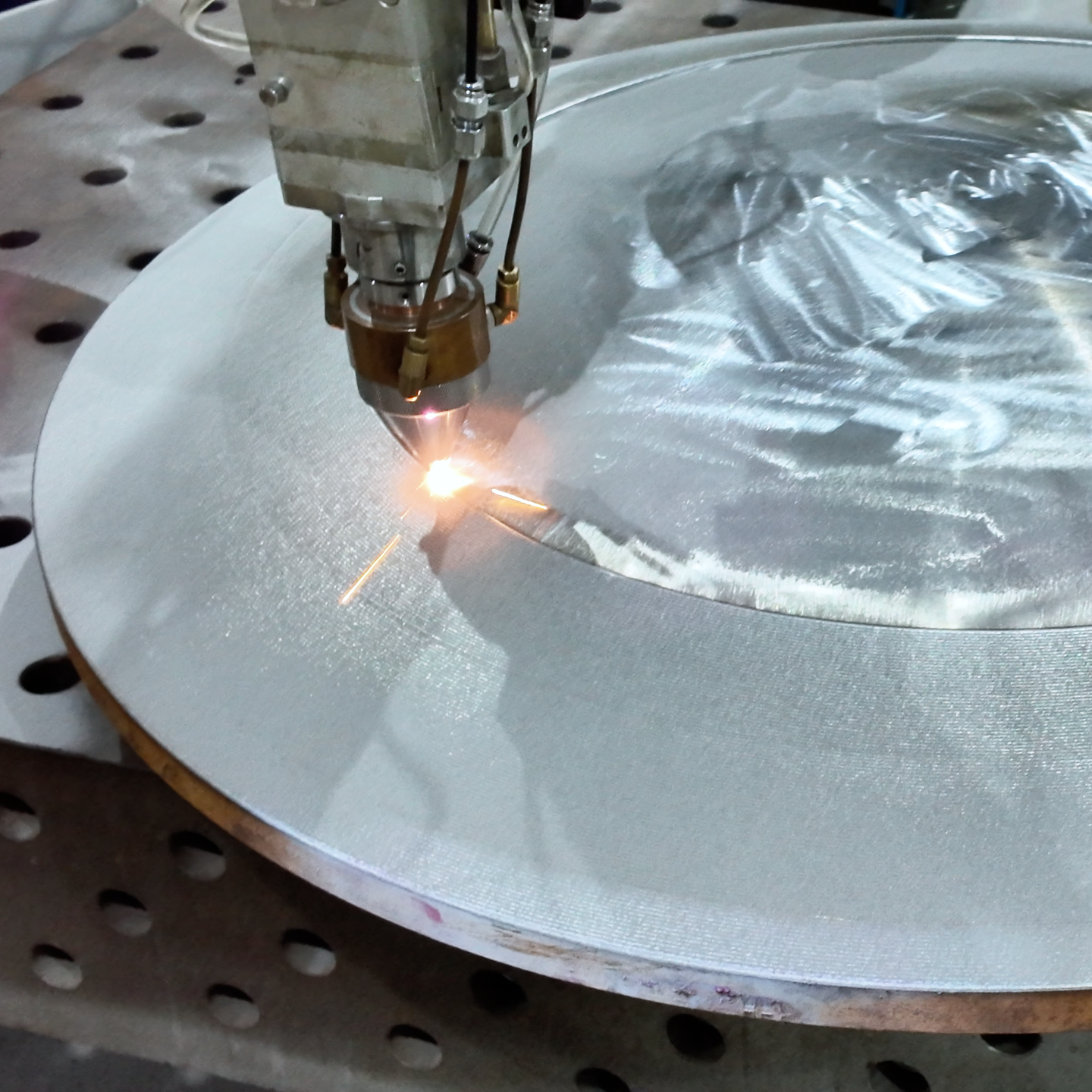

Laser is used to spray metal powder onto the surface of the workpiece, while forming a melting pool between the powder and the workpiece surface. Material deposition and forming are achieved by controlling the powder and energy input.
The oxygen content is controlled at ≤ 50ppm to meet the integrated printing requirements of various active metals such as titanium alloys, aluminum alloys, high-temperature alloys, and various steels. Circulating gas washing can control the internal oxygen and water content below 50ppm.
Support rapid and precise molding of large and complex components, such as rocket engine parts, enabling direct printing of complex internal flow channels and lightweight structures, significantly optimizing the performance and production efficiency of aerospace components.
Supports configuring 2-6 powder feeders, paired with powder buckets, to achieve continuous powder feeding without stopping, real-time powder mixing, and multifunctional gradient material powder feeding.
The processing space is up to 1000 * 800 * 900mm; the structure is compact, all functions are integrated into the control panel, and safety signals are interlocked.
Directional energy deposition technology
Sealed environmental box combined with circulating deoxygenation system
5-axis simultaneous control
Carrier type powder feeder
Larger space, highly integrated
Equipment Parameters
Model
LOM Series
Motion Method
Six-axis serial robot with horizontal bed and positioner
Robot Arm Reach
1400mm-3500mm (optional)
Powder Feeder Quantity
2
Laser Power
3000W–6000W
Applicable Materials
Nickel-based alloys, mold steel, stainless steel, high-strength steel
Laser Type
Fiber laser
Optional Accessories
Robot slide table, single-axis positioner, dual-axis positioner
Print Sample Display
Robot cladding LOM/MRL series
